尊敬的新老客户：
我公司代理的美国PELCO公司的生产的微波快速组织处理系统样机现已到货，有需要的客户可联系我公司做样和参观！
联系人：陈秋平
联系电话：13380036316
微波处理系统介绍：
近十年来，Ted Pella公司在微波组织处理技术方面一直处于全球领先的水平。公司新一代的BioWave® Pro微波处理系统使电镜生物样品处理过程变得前所未有的简单和高效。
1、 卓越的微波控制功能
卓越的微波功率和温度控制 使样品处理结果变得更为可靠。功率大小从110至750W之间连续可调；
2、 无可比拟的应用灵活性
适用于电镜组织处理、免疫标记、脱钙、固定等各种用途；
3、 升级的方法管理程序
提供对样品处理方法的储存、编辑、调用等各种功能；
4、 真正简便的操作过程
直观的智能触摸屏控制面板使得操作过程简单，所有设置一目了然；
5、 可靠的样品处理结果
强大的微波控制功能保证了可靠而高质量的样品处理结果；
6、 精确的样品温度控制功能
PELCO ColdSpot®技术避免了样品受热的不足，充分利用了电镜样品微波处理的优势。
7. 方便快捷
|
处理步骤 |
传统微波处理技术 1 |
真空微波处理技术 2 |
传统处理技术 |
|
1. 初步固定(乙醛) |
.....10 分钟 |
.....6分钟 |
.....60分钟 |
|
2. 缓冲漂洗 |
.....6分钟 |
.....4分钟 |
.....30分钟 |
|
3. 二次固定 (锇) |
.....10分钟 |
.....6分钟 |
.....60分钟 |
|
4. 脱水 (丙酮/乙醇) |
.....7分钟 |
.....7分钟 |
.....120分钟 |
|
5. 树脂渗透 |
.....50分钟 |
.....8分钟 |
.....1080分钟 |
|
6. 将组织埋入包埋舱 |
.....15分钟 |
.....15分钟 |
.....15分钟 |
|
7. 树脂聚合 |
.....45-75分钟 |
.....45-75分钟 |
.... .1080分钟 |
|
合计 |
. 约170分钟 |
.... 约120分钟 |
. 约2,450分钟 |
二、新特点
＊ 新一代改进的PELCO ColdSpot®温控器  ＊ 微波功率的自动校正功能
＊ 功率连续可调
＊ 集成的搅拌器
＊ 远程监控功能
＊ 通过UL和CE认证
＊ 微波处理使样品处理的时间大大缩短同时又保证处理结果的可靠和高质量。
＊ 升级的方法管理程序使得更为复杂、自动的处理过程得以实现，方法程序需要时可以编辑、存储和调用。
＊ 远程监控功能大大提高了实验室的效率。
＊ 通过BioWave® Pro系统的USB接口和电脑相连，可以通过PelgraphTM软件在电脑屏幕上显示所有的参数。
＊ 微波样品处理变得前所未有的简单
三、操作面板
＊ 手动控制
＊ 自动控制
＊ 设置
＊ 系统选项
四、技术参数
＊ 微波功率范围：110-750W之间连续可调
＊ 微波频率：2.45GHz
＊ 微波功率控制：可编程控制器，包括10项可调的设置
＊ 功能控制：6＂触摸屏用户界面
＊ 温度控制：±1℃（对于大多数水溶液）
＊ 内部冷却控制：集成的水冷系统
＊ 外部冷却系统（选件）：PELCO Steady Temp™，450W冷却系统
＊ 磁搅拌器：0-300rpm
＊ 出口：110cfm容量
＊ 放气：门打开时自动放气
＊ 真空系统：20＂Hg,三种可选模式
＊ 空气鼓泡器：2.5＂水压时高达0.8ltr/min
＊ 样品处理方法管理：可存储多达200步的方法
＊ 认证：UL/CE
＊ 大小规格：55.3cm W x 51.4cm D x 54.6 cm H
＊ 重量：37.7kg
＊ 电压要求：16A/230V

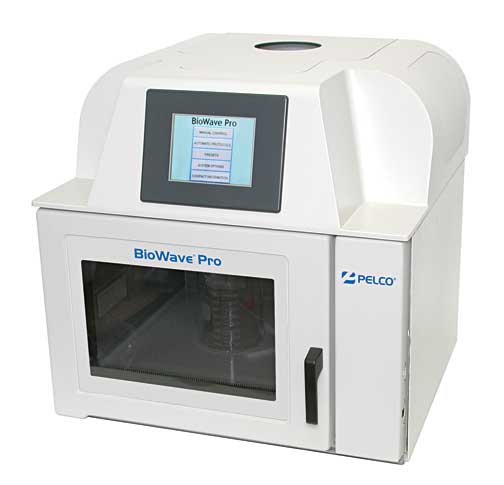

Introducing the PELCO BioWave® Pro. Microwave tissue processing technology, pioneered by Ted Pella, Inc. over the last decade, has evolved into the new BioWave® Pro system, offering a superior level of control and ease of operation. True variable wattage control and the unique PELCO ColdSpot® are now complemented by an intuitive and intelligent touch screen control panel. The unprecedented level of precise and extensive control delivers consistent quality tissue processing results. Protocol programming and development is right at your fingertips and offers true ease of operation. Remote access allows protocol monitoring from your desk and has improved serviceability of the unit to a new standard. With the BioWave® Pro, superior results from microwave to microscope have never been easier.
Microwave Tissue Processing Techniques: Their Evolution and Understanding. Microscopy and Analysis 20(6):23-24 (UK), 2006
 |
With Application Kits available that deliver superior results from microwave to microscope for:
- EM Tissue Processing
- Immunolabeling
- Formaldehyde Fixation and EDTA Decalcification
- Paraffin Tissue Processing
- Confocal Microscopy and In Situ Hybridization
|
|
PELCO BioWave® Pro with the PELCO ColdSpot®
placed in chamber |
|
| Prod # |
Description |
Unit |
Price |
|
|
PELCO BioWave® Pro Standard System) |
|
|
| includes: Pelgraph Temperature Monitoring Software, Temperature Probe and Stand, Exhaust Connectors and Tubing, 2 Quick-Disconnect Fittings, Manual, Safety Instructions, Warranty Card |
|
Application Kits provide custom configuration for your exact needs:
|
|
|
Formaldehyde Fixation
and EDTA Decalcification |
Paraffin Tissue Processing
|
Confocal Microscopy and
In Situ Hybridization
Protocol 2 |
PELCO ColdSpot® GP
(36116-10) |
PELCO ColdSpot® GP
(36116-10) |
--- |
PELCO ColdSpot® PP
(36116-20) |
PELCO ColdSpot® GP
(36116-10) |
| Microwave Vacuum Chamber (3435) |
Microwave Vacuum Chamber
(3435) |
--- |
--- |
Microwave Vacuum Chamber
(3435) |
| --- |
--- |
PELCO SteadyTemp™
(50061) |
--- |
PELCO SteadyTemp™
(50061) |
| --- |
--- |
--- |
PELCO TissueVac®
(36160) |
--- |
| --- |
12 & 24-Wellplate Inserts (36170 & 36172) |
--- |
--- |
12 & 24-Wellplate Inserts (36170 & 36172) |
PELCO Prep-Eze™
6 & 12-Well Kits
(36157 & 36158) |
--- |
--- |
--- |
--- |
Microwave Capsule Holder
(36131) |
--- |
--- |
--- |
--- |
Microwave Microcentrifuge
Tube Holder (36134) |
--- |
--- |
--- |
--- |
Microwave Polymerization Tray
(36133) |
--- |
--- |
--- |
--- |
| --- |
Sequenza™ Slide Rack
(36150) with
Coverplate™ Assemblies
(36107) |
--- |
--- |
--- |
| Bubbler Probe (050-010) |
Bubbler Probe (050-010) |
--- |
Bubbler Probe (050-010) |
--- |
| --- |
--- |
DFR Insert with PTFE Cassette
Rack (36200) |
--- |
--- |
| --- |
--- |
Vapor Trap (50050-10) |
--- |
--- |
| --- |
--- |
--- |
PELCO HistoWave
Cassette System (36150) |
--- |
| --- |
--- |
--- |
Paraffin Heating Tile (36150-1) |
--- |
Application Kit Ordering Information
|
| Prod # |
Description |
Unit |
Price |
|
|
EM Tissue Processing Application Kit |
|
|
| includes: PELCO ColdSpot®, Microwave Vacuum Chamber, PELCO Prep-Eze™ 6 and 12-Well Kit, Microwave Microcentrifuge Tube Holder, Microwave Polymerization Tray, Bubbler Probe |
| |
|
| Prod # |
Description |
Unit |
Price |
|
|
Immunolabeling Application Kit |
|
|
| includes: PELCO® ColdSpot, Microwave Vacuum Chamber, 12 and 24-Wellplate Inserts, Sequenza Slide Rack, Coverplate Assemblies, Bubbler Probe |
| |
|
| Prod # |
Description |
Unit |
Price |
|
|
Formaldehyde Fixation and EDTA Decalcification Application Kit |
|
|
| includes: PELCO SteadyTemp™, DFR Insert with PTFE Cassette Rack, Vapor Trap |
| |
|
| Prod # |
Description |
Unit |
Price |
|
|
Paraffin Tissue Processing Application Kit |
|
|
| includes: PELCO ColdSpot®, Bubbler Probe, PELCO HistoWave® Cassette System, Paraffin Heating Tile |
| |
|
| Prod # |
Description |
Unit |
Price |
|
|
Confocal Microscopy and In Situ Hybridization Application Kit |
|
|
| includes: PELCO ColdSpot®, Microwave Vacuum Chamber, PELCO SteadyTemp™, 12 and 24-Wellplate Inserts |
| |
Benefits of the PELCO BioWave® Pro system
| Superior Microwave Processing Control |
|
The combination of true power and temperature control has resulted in superior control of the microwave environment giving superior results. The power setting is now fully selectable from 90 - 750 Watts. |
| Unrivaled Application Flexibility |
|
The PELCO BioWave® Pro can be easily optimized for specific needs like EM tissue processing, immunolabeling, decalcification, fixation, etc., with a range of available application kits. |
| Enhanced Protocol Management |
|
Pre-programmed protocols are supplied with the system, a full set of tools for editing, programming and copying enables creating and storing of specific protocols. |
| True Ease of Operation |
|
Touch screen operation facilitates straightforward and intuitive operation of the PELCO BioWave® Pro while current settings are directly visible. |
| Consistent Quality Results |
|
By taking extensive control of all microwave environment parameters, consistent and high quality results are readily achieved. |
| Precision Sample Temperature Control |
|
The PELCO ColdSpot® unit combined with a choice of cooling systems takes away the heating factor, therefore taking full advantage of the microwave effect. |
| State of the art Temperature Probe |
|
To monitor and/or maintain preset temperature maximums during microwave processing. The Temperature Probe is accurate to ±1°C (from 0°C to 100°C) and will maintain ±1°C in water and most fixative solutions. |
|
Safe System |
|
The microwave cavity is continuously vented with a 110CFM capacity to guard against fume buildup. The unit is fully compliant with US safety requirements for laboratory equipment and is ETL and CE certified. |
|
PELCO ColdSpot® Technology |
|
The unique and proprietary PELCO ColdSpot® technology for the PELCO BioWave® Pro has been developed specifically to:
- reduce energy density differences in the microwave cavity
- absorb reflected energy within the microwave cavity
- remove heat (in conjunction with the integrated load cooler or optional PELCO SteadyTemp™ system)
- reduce sample heating rates to enable increased microwave processing times
The PELCO ColdSpot® enables excellent control of the microwave environment and is a critical component in delivering high quality and consistent tissue processing results. |
|
Decalcification and Fixation Processing |
|
Conventional methods for Decalcification with EDTA and formaldehyde Fixation (DFR-Insert) requires considerable time to complete. Using the new PELCO BioWave® Pro with PELCO SteadyTemp™ will reduce turnaround times for these processing by a factor of 10-20. It is the first microwave processing system to uncouple microwave heating form microwave energy. The combination of technologies enables to maintain a constant set processing temperature in combination with continuous exposure. |
 |
Continuous heat removal during microwave exposure ensures a constant temperature environment (∆T=0°C) during processing. This environment can be maintained for minutes, hours, days or we | |
